Brass Industrial Gland
SKU:
Application:
Indoor or Outdoor
For use with all types of unarmoured cable where it is essential

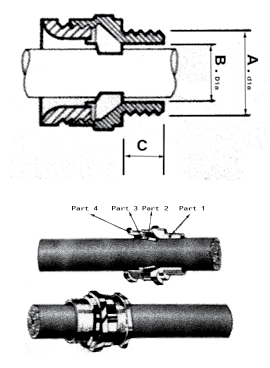

Fitting Instructions:
1. Screw part 1 into Panel opening, or through clearance hole and secure with locknut.
2. Ensure that part 2 (Neoprene Seal) and part 3 (Skid washer), are in position inside of
the part 1 and that part 4 is engaged into part 1 by the first thread. In this position, there
should be no contraction of the seal.
3. Pass cable gland and screw part 4 into part 1, which will drive the neoprene up the
internal taper of part 1, thus contracting it down the cable’s sheathing, which will produce
an excellent moisture-proof seal.
Application:
Indoor or Outdoor
For use with all types of unarmoured cable where it is essential
Fitting Instructions:
1. Screw part 1 into Panel opening, or through clearance hole and secure with locknut.
2. Ensure that part 2 (Neoprene Seal) and part 3 (Skid washer), are in position inside of
the part 1 and that part 4 is engaged into part 1 by the first thread. In this position, there
should be no contraction of the seal.
3. Pass cable gland and screw part 4 into part 1, which will drive the neoprene up the
internal taper of part 1, thus contracting it down the cable's sheathing, which will produce
an excellent moisture-proof seal.
